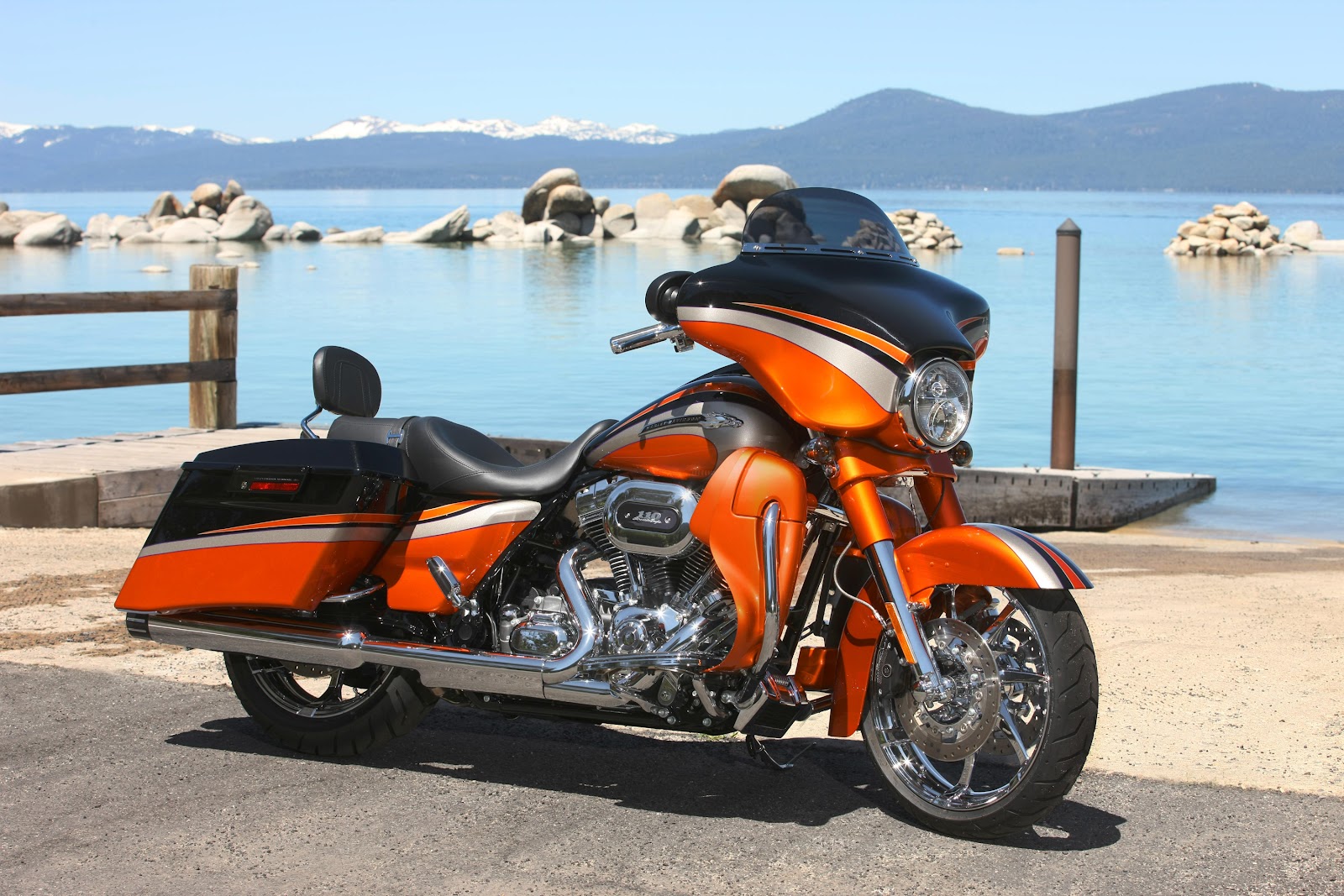

2011 Harley-Davidson HXSE2 CVO STREET GLIDE

MODEL HIGHLIGHTS KEY FEATURES

The Harley-Davidson® CVO™ Street Glide® is a limited-production version of the popular Harley-Davidson hot-rod bagger. Powered by the largest-displacement V-Twin engine offered by Harley-Davidson, this potent touring bike is loaded with sparkling chrome, electrifying paint, and fresh custom-styling ideas.

Production is limited to approximately 3,700 units assembled at the Harley-Davidson Vehicle Operations facility in York, Pa.

The CVO Street Glide is built on the innovative Touring chassis, featuring a single-spar, rigid backbone frame and a strong swingarm designed to handle the demands of long-haul touring and more powerful engines.

  • Anti-Lock Brakes (ABS)
  • Electronic Cruise Control
  • Smoked turn signal lenses with amber bulbs
  • Carry-out saddlebag liners
  • One-piece, injection-molded extended saddlebags that wrap around the mufflers and hug the ground
  • Color-matched rear fascia panel with integrated LED stop/turn/tail lights

Chrome Accessories:

  • Fork sliders
  • Voltage regulator
  • Push-button fuel door
  • Classic front axle nut covers
  • Lower triple tree cover
  • Front wheel spacer
  • Valve stem cover caps
  • Dipstick
  • Rider footboard supports
  • Adjustable passenger footboard supports

Other features:

  • Black high-torque 1.4kW starter
  • High-performance clutch with hydraulic actuation
  • Harley-Davidson® Smart Security System with siren
DIMENSIONS
Length 96.2 in. (2443 mm)
Overall Width 38.4 in. (975 mm)
Overall Height 54.3 in. (1379 mm)
Seat Height (Laden) 26.5 in. (673 mm)
Seat Height (Unladen) 27.4 in. (696 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.3°
Trail 6.69 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series)
Front – D408 130/60B19 61H
Rear – D407 180/55B18 80H
Fuel Capacity 6.0 gal. (22.7 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain Case Capacity 1.4 qts.
Weight (As Shipped) 814 lbs. (369.2 kg)
Weight (In Running Order) 852 lbs. (386.5 kg)
Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
Gross Axle Weight Rating (Front) 500 lbs. (226.8 kg)
Gross Axle Weight Rating (Rear) 927 lbs. (420.5 kg)
ENGINE
Engine Air-cooled, Twin Cam 110™
Valves Pushrod-operated, overhead valves (2 per cylinder)
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1803 cc)
Compression Ratio 9.15:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Chrome cover, Die cast high flow backplate, washable element
Lubrication System Pressurized, dry-sump
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Hydraulically actuated, 9-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4.0
5th 3.407
6th 2.875
CHASSIS
Frame Mild steel, tubular frame with welded backbone
Swingarm Mild steel, two-piece, drawn and welded
Front Forks 41.3 mm telescopic with blow-by valve
Rear Shocks Hydraulic – adjustable
Wheels 7-spoke, contrast chrome Agitator wheels
Front 19 in. x 3.5 in. (483 mm x 89 mm)
Rear 18 in. x 5 in. (457 mm x 127 mm)
Brakes
Caliper Type 32 mm, 4-piston fixed front and rear
Rotor Type (Front – floating) 11.81 in. x .2 in. (300 mm x 5 mm)
Rotor Type (Rear) 11.81 in. x .28 in. (300 mm x 7 mm)
Anti-lock Braking System Standard
Suspension Travel (Front Wheel) 4.6 in. (117 mm)
Suspension Travel (Rear Wheel) 2 in. (51 mm)
PERFORMANCE
Engine Torque (North America) 115 ft. lbs. @ 4000 RPM (156 Nm @ 4000 RPM)
Lean Angle (Right) 32°
Lean Angle (Left) 30°
Fuel Economy (EPA urban/highway test) 32/47 mpg (7.40/5.0 L/100 km)
ELECTRIC
Battery Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system
Starting 1.4 kW electric with solenoid shift starter
Lights
Headlamp (dual bulb halogen) 55-watt low beam, 120-watt high beam
Tail/Stop Lights Combination LED
Turn Signal Lights 28W (21W) self-canceling
Indicator Lamps High beam, running lights, neutral, low oil pressure, engine diagnostics, turn signals, security system, 6-speed, low fuel warning, cruise control, ABS
WARRANTY
Warranty 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
