Technical Data / Specifications
| Engine & Drivetrain | |
|---|---|
| Drive System Type | On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System (EBS) | Not Equipped |
| Engine Type | Single 48-Volt, High-Efficiency, AC-Induction Motor |
| Fuel System/Battery | Traditional Lead-Acid (11.7 kW battery pack, 8x 12V US12VXC batteries in series-parallel) |
| Horsepower | 30 HP (Motor Peak) |
| Transmission/Final Drive | Direct Drive with Low-Noise Gears (Motor-to-Transaxle) |
| Controller | 650-Amp Sevcon Gen IV with Multi-Mode Driving and Regenerative Braking |
| Maximum Speed | 25 MPH (40.2 km/h) |
| Range | 50 miles (80.5 km) in Max Range Mode on flat ground (varies with conditions) |
| Throttle | Redundant, Non-Contact, Inductive-Sensing Pedal |
| On-Board Charger | Delta Q 120-Volt AC Input; 48-Volt DC Output |
| Charge Time | 8 Hours (Dependent on Depth of Discharge) |
| Dimensions | |
| Overall Vehicle Size (L x W x H) | 110 x 58 x 73 in (279 x 147 x 185 cm) or 108 x 56.5 x 73 in (274.3 x 143.5 x 185.4 cm) |
| Bed Box Dimensions (L x W x H) | 32 x 42 x 11.5 in (81 x 107 x 29 cm) |
| Wheelbase | 72 in (182.9 cm or 183 cm) |
| Ground Clearance | 10 in (25.4 cm) |
| Estimated Dry Weight | 1,762 lb (799.2 kg) or 1,750 lb (793.8 kg) |
| Gross Vehicle Weight (GVW) | 2,762 lb (1,253 kg) or 2,800 lb (1,270 kg) per OSHA 29 CFR 1928.53 |
| Turning Radius | 14.9 ft (150 in or 381 cm) |
| Load Capacity | |
| Box Capacity | 500 lb (226.8 kg or 227 kg) |
| Payload Capacity | 1,000 lb (453.6 kg or 455 kg) |
| Hitch Towing Rating | 1,500 lb (680 kg) or 1,250 lb (567 kg) |
| Hitch Type | Standard 2 in (5.08 cm) Receiver |
| Cargo System | Lock & Ride |
| Person Capacity | 2 |
| Brakes | |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Hand-Actuated, Dash-Mounted Lever-Activated Mechanical Park Brake |
| Suspension | |
| Front Suspension | MacPherson Strut with 9 in (22.7 cm or 22.9 cm) Travel |
| Rear Suspension | Dual A-Arm, IRS with 9 in (22.9 cm) Travel |
| Tires / Wheels | |
| Front Tires | 25 x 9-12; Carlisle All Trail II |
| Rear Tires | 25 x 9-12; Carlisle All Trail II |
| Tire Ply Rating | 4 Ply Rated |
| Tire Pressure | 20 psi (137.9 kPa) |
| Wheels | Stamped Steel |
| Additional Features | |
| Adjustable Driver Seat | Not Equipped |
| Color / Graphics | Avalanche Gray |
| Electronic Power Steering | Not Equipped |
| Instrumentation | Digital Hour Meter, Mode Indicator, DC Outlet, Hi-Temp Light, Change Cycle Indicator, Battery Life Indicator, Charge Indicator |
| Lighting | 50W Headlights, LED Taillights, Brake Lights |
| Tilt Steering | Standard |
| Cup Holders | Dual Cup Holders |
| Indicator Panel | Indicates Directional Selection, Park Brake, Motor/Controller Malfunction |
| Auxiliary Power | 12-Volt Accessory Outlet |
| Rider Restraints | Automotive-Style 3-Point Seat Belts |
| Multi-Mode Switch | L/M/H (Low/Max Range/High) |
| Storage | Glove Box |
| Skid Plate | Plastic |

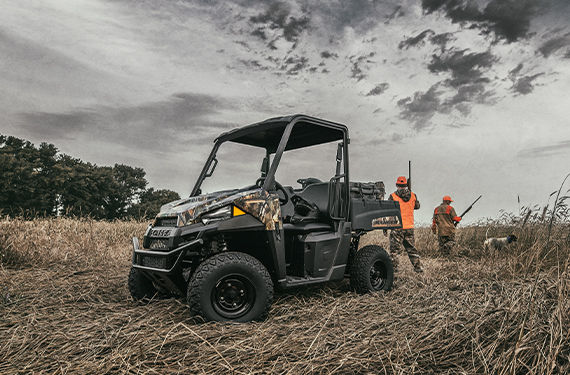

The 2022 Ranger EV, crafted by Polaris under its renowned Ranger lineup, is an all-electric all-terrain vehicle (ATV) designed to deliver exceptional performance with minimal environmental impact. This utility side-by-side sets the standard for electric vehicles in its class, offering a compelling blend of power, versatility, and eco-friendliness.
Experience the Electric Advantage
The Ranger EV stands out for its low-maintenance design, superior work capability, and smooth ride quality—outshining other electric vehicles in its category. Its whisper-quiet operation makes it ideal for hunting, while its clean electric power respects the land. Whether you’re tackling tough jobs or enjoying outdoor adventures, the Ranger EV proves that electric utility doesn’t mean compromise.
Owner Spotlight
One satisfied owner shared, “We use the Ranger EV for everything—from hauling rock to transporting a log-cutting crew to rolling trash cans to the road. I wish I had bought it sooner. I really love that it’s electric.” This real-world feedback highlights the vehicle’s versatility and the appeal of its electric powertrain.
Quiet Power for Tough Tasks
With a robust 30-horsepower electric motor, the Ranger EV eliminates the trade-off between power and sustainability. It boasts a 500-pound box capacity and an impressive 1,500-pound towing capacity, ensuring it’s ready for heavy-duty challenges. Whether you’re moving gear or towing equipment, this ATV delivers capability without the noise or emissions of traditional gas-powered models.
Smooth Suspension for Any Terrain
Navigating rough landscapes is effortless with the Ranger EV’s 10.5 inches of ground clearance and 9 inches of independent rear suspension. This combination ensures a comfortable, controlled ride, even over uneven or rugged ground, making it a reliable choice for work or recreation.
A Hunter’s Best Companion
For hunters, the Ranger EV is a game-changer. Its ultra-quiet operation allows for stealthy approaches and departures, boosting your chances of success in the field. Capable of reaching remote hunting spots with ease, it pairs discretion with durability—two hunters walking away from their Polaris Ranger EV can attest to its prowess as the ultimate hunting partner.
