Technical Specifications
| ENGINE | |
|---|---|
| Engine Type | 1312cc liquid-cooled V-twin four-stroke |
| Bore And Stroke | 89.5mm x 104.3mm |
| Compression Ratio | 9.2:1 |
| Valve Train | SOHC; three valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 38mm throttle body |
| DRIVETRAIN | |
| Transmission | Five-speed manual |
| Final Drive | Shaft |
| CHASSIS SUSPENSION BRAKES | |
| Front Suspension | 45mm fork; 5.1-inch travel |
| Rear Suspension | Single shock; 3.7-inch travel |
| Front Brake | Single 336mm disc with twin-piston caliper; ABS |
| Rear Brake | Single 296mm disc; ABS |
| Front Tire | 90/90-21 |
| Rear Tire | 200/50-18 |
| DIMENSIONS | |
| Rake | 32.0° |
| Trail | 3.6 inches |
| Wheelbase | 71.0 inches |
| Seat Height | 26.7 inches |
| Curb Weight | 675 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 3.4 gallons |
| OTHER | |
| Model ID | VT1300CX |
| Emissions | Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment. |
| Available Colors | Adventure Green |
| FACTORY WARRANTY INFORMATION | |
| Duration | Transferable, one year included, limited warranty |
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Features

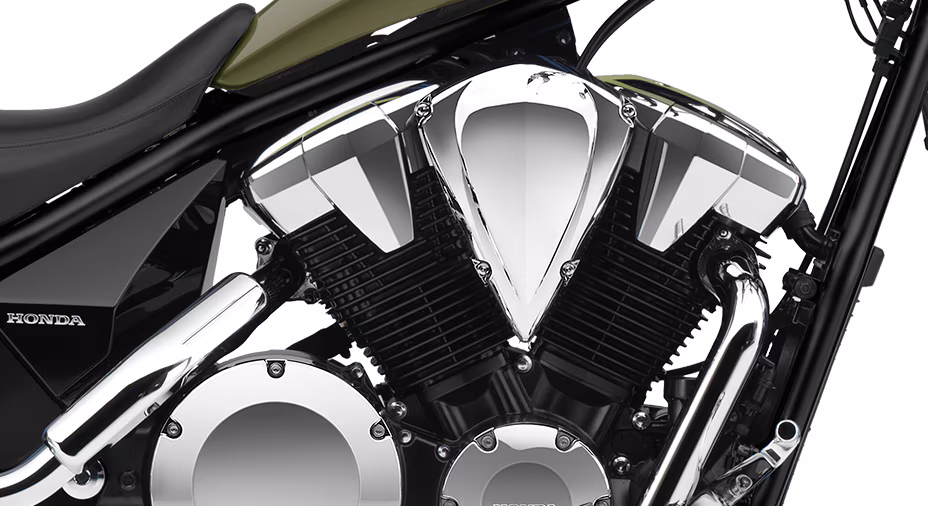

V-Twin engine

Our artfully crafted 1312cc, 52-degree V-Twin engine features a single-pin crankshaft and dual counter-balancers, generating abundant torque and epitomizing the big-twin experience.

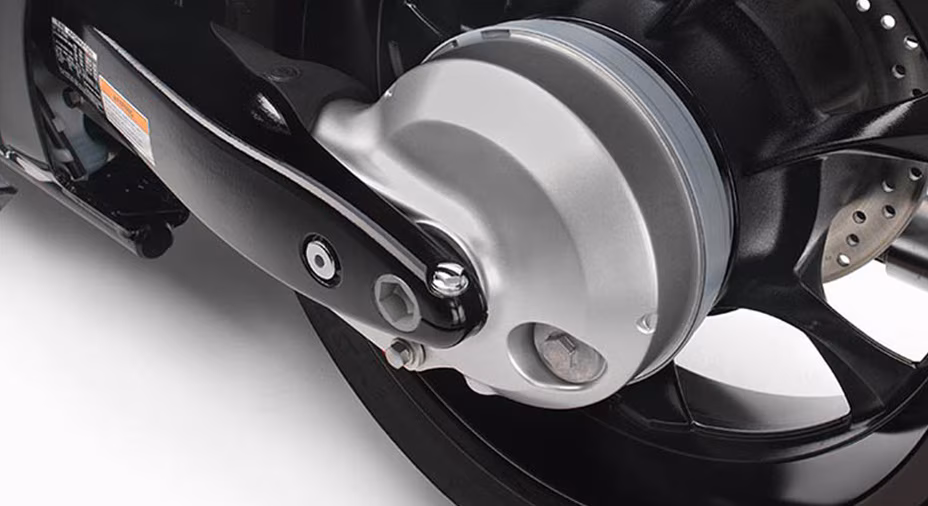

Shaft final drive

The shaft drive is beautifully woven into the overall design, adding a touch of refinement while reducing the amount of required maintenance.
Fuel injection

The fuel-injection system means no-hassle startups on cold mornings or at high altitudes. It also improves engine response and helps deliver a smooth ride.
200-series rear tire

Blending the ultra-wide 200-series rear tire with an equally sleek front tire creates the perfect balance of chopper style and big-twin performance.

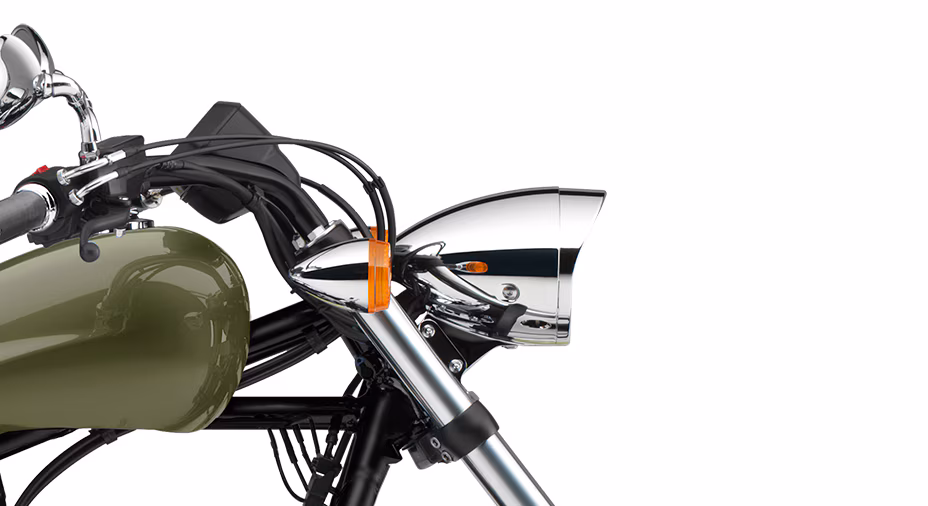

Raked front-end

The raked-out front-end, stretched 71-inch wheelbase, and hardtail-style rear-end combine to create a long, low, and lean look.

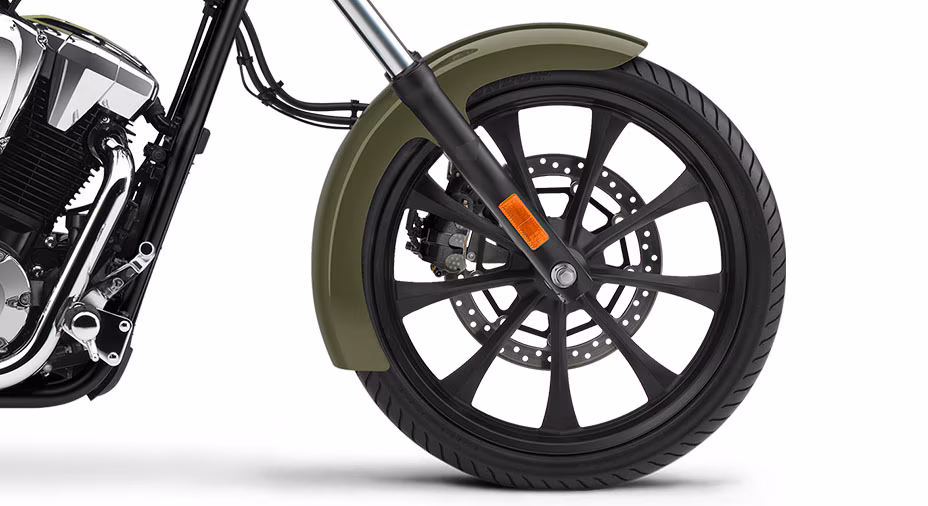

Standard ABS

Our Anti-Lock Braking System (ABS) is standard and provides confident stopping power even in less-than-ideal road conditions, such as wet roads or gravel.

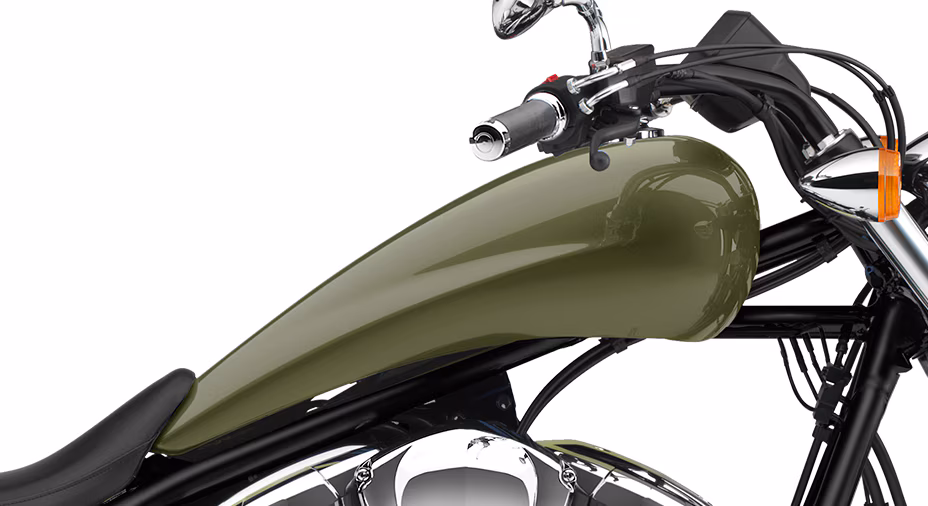

Chopper styling

This bike redefines custom motorcycle design with its sleek teardrop fuel tank, innovative single-shock rear suspension system, and aluminum swingarm.

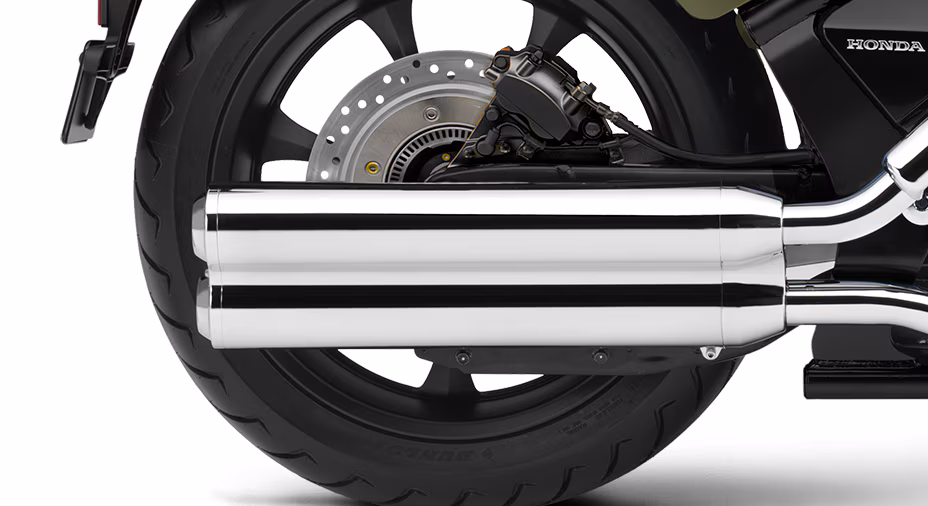

Chrome exhaust

A stylish 2-into-2 chrome exhaust flows from the V-Twin powerplant, resulting in a rumbling sound and an exhilarating power pulse that defines the bike’s character.

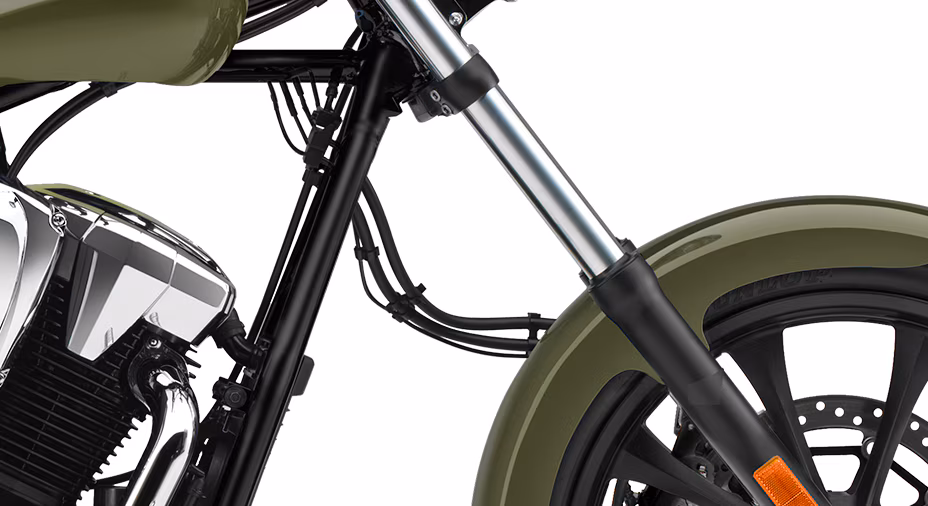

Stretched frame

The beautiful machine features a high-tensile steel frame at its core, showcasing an open, minimalist chopper style. This frame enhances its aesthetics and serves a practical purpose by providing a smooth and responsive ride quality.
Low seat height
The super-low 26.7-inch seat height seamlessly integrates with the slender, elongated tank for a harmonious union that elevates form and function.
