2026 Harley-Davidson FXD Super Glide
The 2026 Harley-Davidson FXD Super Glide is a limited-production cruiser motorcycle manufactured by Harley-Davidson for the 2026 model year. The model marks the first use of the “Super Glide” nameplate since the Dyna FXD was discontinued after 2017. Harley-Davidson announced the 2026 FXD as part of its “Factory Custom Revival” program, with production limited to 2,500 serialized units worldwide.
Background
The original FX Super Glide debuted in 1971 as Harley-Davidson’s first “factory custom,” combining the front end of a Sportster with the frame and powertrain of a Big Twin. The nameplate ran through 2017 on the Dyna chassis before being retired during the Dyna-to-Softail platform consolidation.

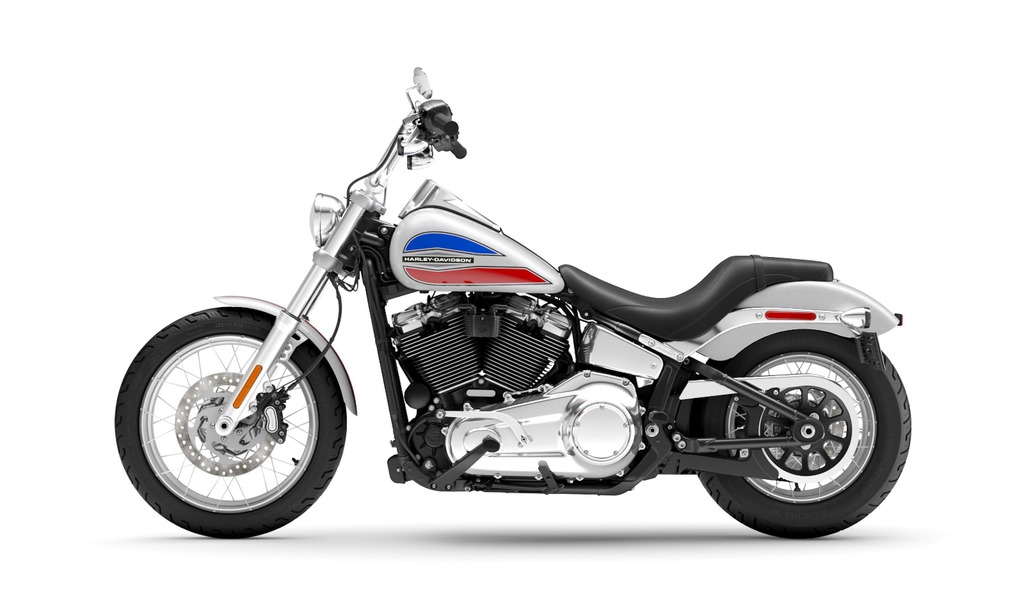

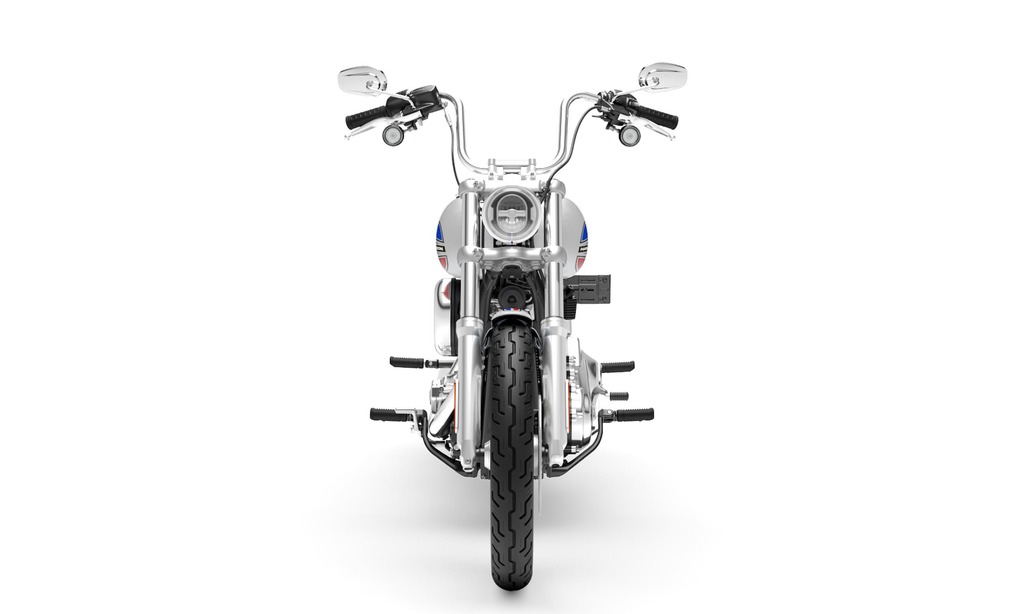

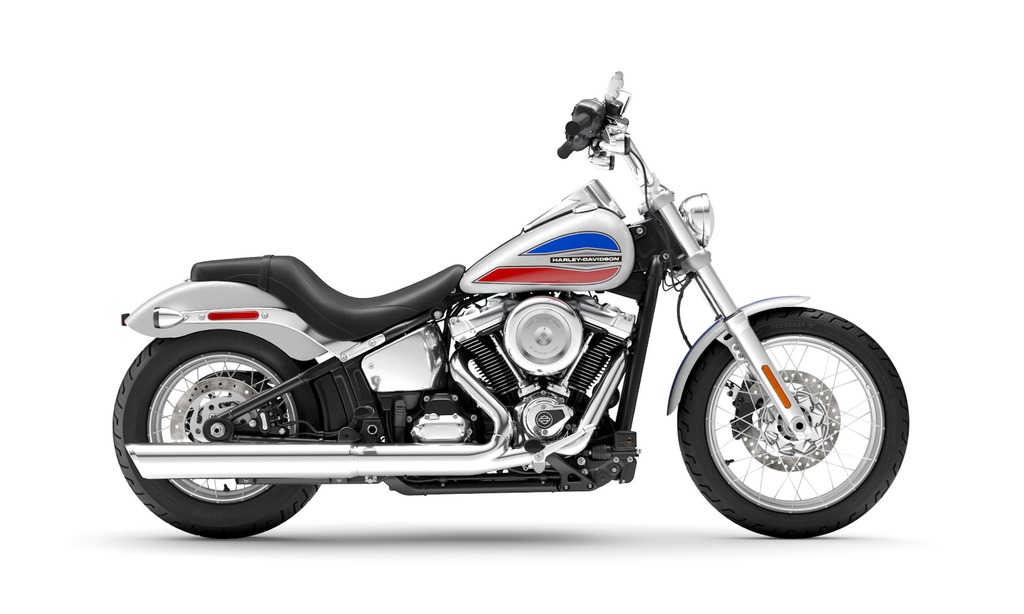

For 2026, Harley-Davidson revived the FXD designation but built the motorcycle on the current Softail frame. The 2026 model uses White Onyx Pearl paint with red/white/blue tank graphics inspired by the 1971 FX. Unlike the base Softail Standard, the 2026 Super Glide receives the Milwaukee-Eight 117 engine, a 5-gallon fuel tank, 10-inch mini-ape handlebars, and chrome tubeless laced wheels.
Market Position and Availability
Harley-Davidson lists MSRP at $18,999 in the United States. Each motorcycle is individually serialized from #0001 to #2500. Distribution began in Q2 2026, with U.S. dealers receiving 1–5 units based on prior year sales volume. As of June 2026, California, Texas, and Florida received the largest state allocations. The model is sold as in-stock inventory only; Harley-Davidson is not accepting custom factory orders for the FXD.
The 2026 Super Glide competes in the mid-premium cruiser segment. It is positioned above the $14,399 Softail Standard FXST and below the $22,499 CVO Street Glide. Key differentiators versus the Softail Standard include a 117ci vs 107ci engine, 120 lb-ft vs 110 lb-ft torque, 5.0-gal vs 3.5-gal tank, and factory mini-apes vs drag bars.
Design and Features
The FXD uses a mild steel tubular Softail frame with a hidden monoshock rear suspension. Styling emphasizes chrome and period-correct cues: gaiter-covered 49mm front forks, chrome laced wheels, 2-into-1 exhaust, and bullet-style LED turn signals. The solo seat is two-up capable. Controls are mid-mount.
Instrumentation consists of a 5-inch analog speedometer mounted on the tank with digital readouts for gear, fuel level, ride modes, odometer, trip, range, and tachometer. The bike includes ABS, traction control, drag-torque slip control, and TPMS as standard. It does not include infotainment, navigation, or cornering-enhanced linked braking.
Complete Technical Specifications: 2026 FXD Super Glide®
Dimensions
|
Specification |
FXD Super Glide® |
|---|---|
|
Length |
91.3 in. (2,320 mm) |
|
Overall Width |
36.4 in. (925 mm) |
|
Overall Height |
45.7 in. (1,160 mm) |
|
Seat Height, Laden |
25.2 in. (640 mm) |
|
Seat Height, Unladen |
26.2 in. (665 mm) |
|
Static Ground Clearance |
4.9 in. (125 mm) |
|
Rake (steering head) |
30 degrees |
|
Fork Angle |
30 degrees |
|
Trail |
6.2 in. (157 mm) |
|
Wheelbase |
64.2 in. (1,630 mm) |
|
Tires, Front |
Dunlop D401F 100/90B19 57H |
|
Tires, Rear |
Dunlop D401T 150/80B16 77H |
|
Fuel Capacity |
5 gal. (18.9 L) |
|
Reserve Fuel Capacity |
1 gal. (3.8 L) warning light |
|
Oil Capacity w/ filter |
5 qt. (4.7 L) |
|
Transmission Capacity |
1 qt. (0.95 L) |
|
Primary Chain Case Capacity |
1.25 qt. (1.18 L) |
|
Weight, As Shipped |
627 lb. (284 kg) |
|
Weight, In Running Order |
656 lb. (298 kg) |
|
GVWR |
1,160 lb. (526 kg) |
|
GAWR, Front |
450 lb. (204 kg) |
|
GAWR, Rear |
730 lb. (331 kg) |
Engine
|
Specification |
FXD Super Glide® |
|---|---|
|
Engine |

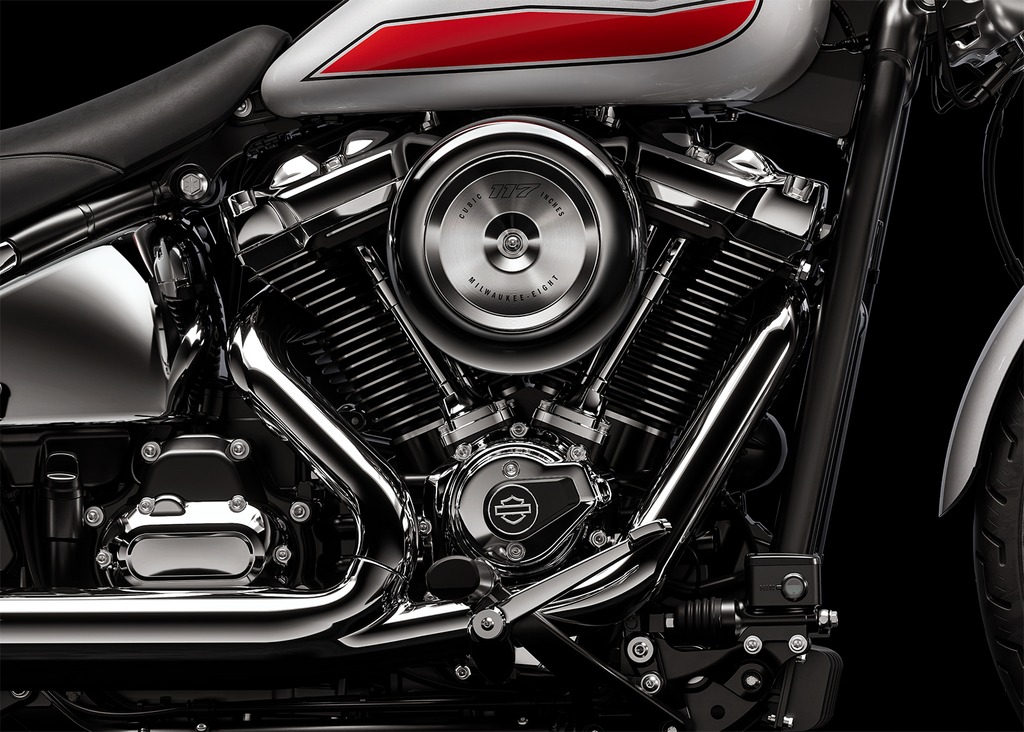

Milwaukee-Eight 117 Classic |
|
Valves |
Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; four valves per cylinder |
|
Bore |
4.075 in. (103.5 mm) |
|
Stroke |
4.5 in. (114.3 mm) |
|
Displacement |
117 cu in (1,923 cc) |
|
Compression Ratio |
10.3:1 |
|
Fuel System |
Electronic Sequential Port Fuel Injection (ESPFI) |
|
Air Cleaner |
9 in. (229 mm) round, center bolt cover with washable fiberglass filter media |
|
Exhaust |

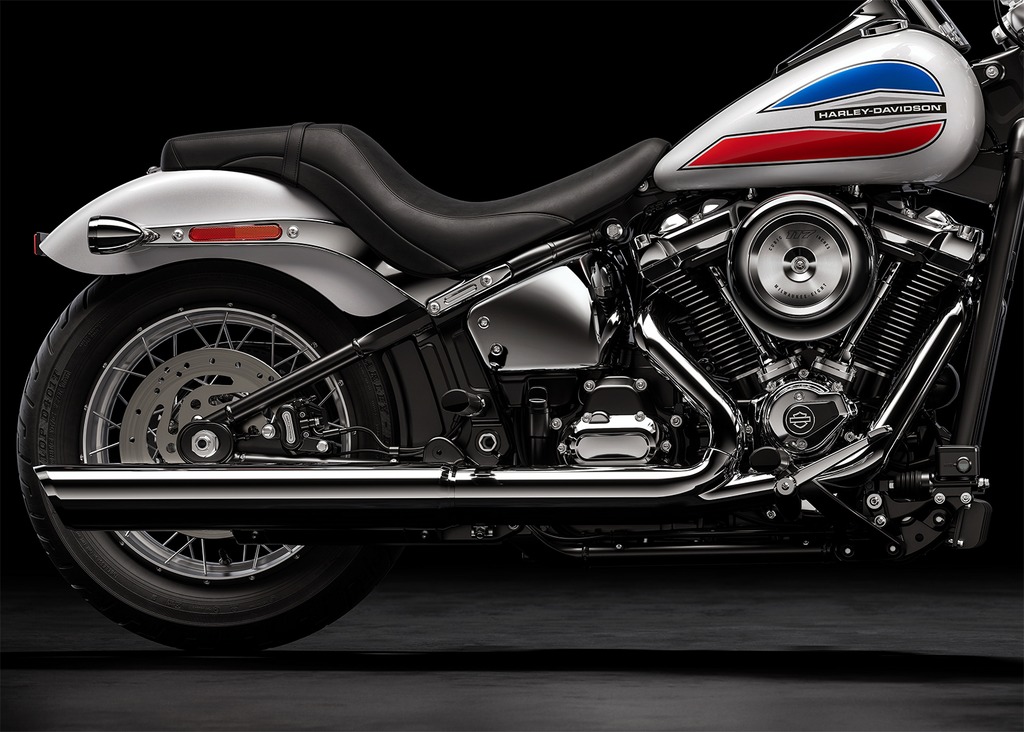

2-into-1; catalyst in header |
|
Lubrication System |
Pressurized, dry-sump with oil cooler |
Drivetrain
|
Specification |
FXD Super Glide® |
|---|---|
|
Primary Drive |
Chain, 34/46 ratio |
|
Final Drive |
Belt, 32/66 ratio |
|
Clutch |
Mechanical, 10 plate wet, assist & conventional |
|
Transmission |
6-Speed Cruise Drive |
|
Gear Ratio 1st |
9.311 overall |
|
Gear Ratio 2nd |
6.454 overall |
|
Gear Ratio 3rd |
4.793 overall |
|
Gear Ratio 4th |
3.882 overall |
|
Gear Ratio 5th |
3.307 overall |
|
Gear Ratio 6th |
2.790 overall |
Chassis
|
Specification |
FXD Super Glide® |
|---|---|
|
Frame |
Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports |
|
Swingarm |
Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer |
|
Front Fork |
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; gaiter covers |
|
Rear Shocks |

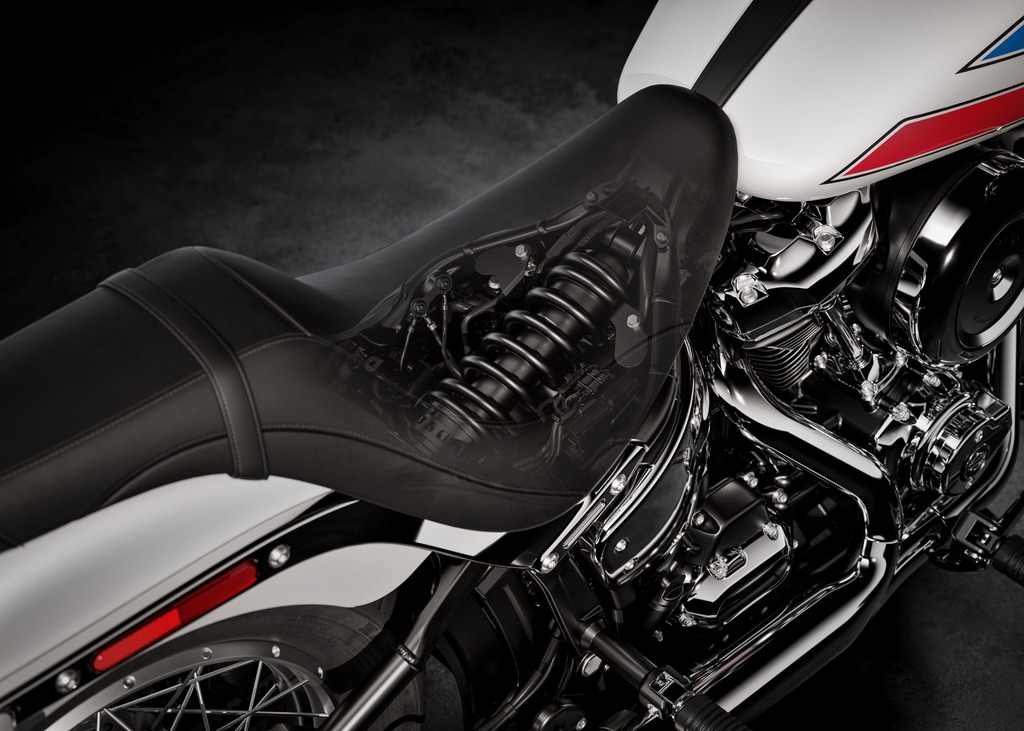

Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment |
|
Wheels, Front |

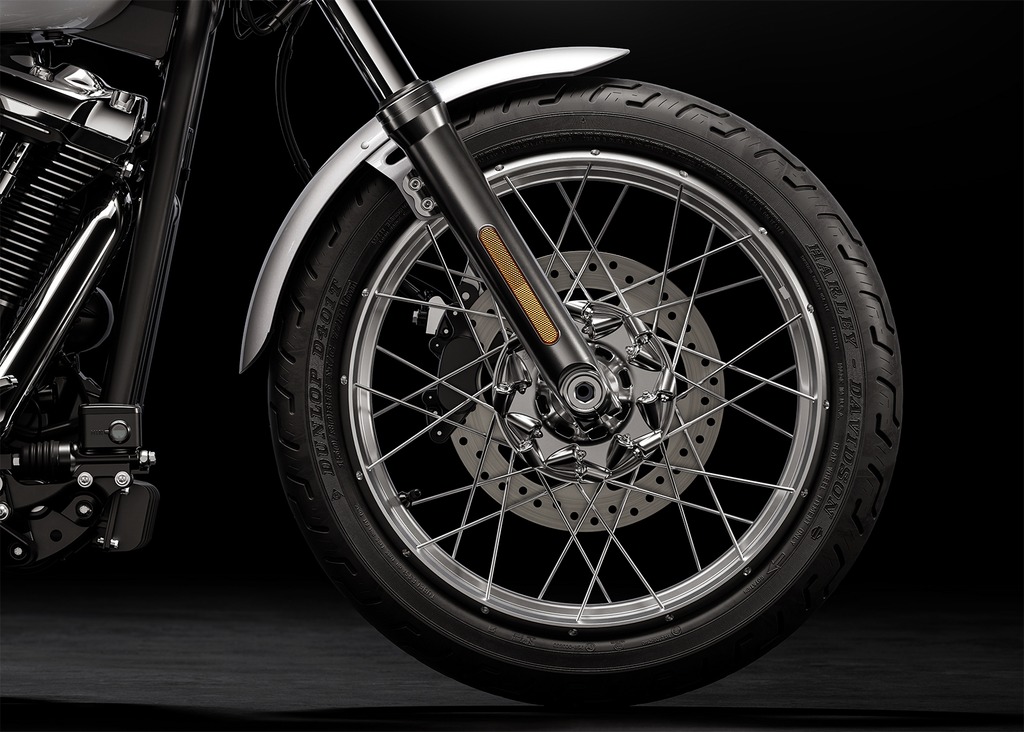

Chrome aluminum tubeless laced, 19 in. x 2.5 in. |
|
Wheels, Rear |
Chrome aluminum tubeless laced, 16 in. x 3 in. |
|
Brakes, Front |
4-piston fixed caliper, 11.8 in. (300 mm) solid rotor, 0.2 in. thick |
|
Brakes, Rear |
2-piston floating caliper, 11.5 in. (292 mm) solid rotor, 0.23 in. thick |
|
ABS |
Standard |
|
Suspension Travel, Front |
5 in. (130 mm) |
|
Suspension Travel, Rear |
3.4 in. (86 mm) |
Performance
|
Specification |
FXD Super Glide® |
|---|---|
|
Engine Torque Method |
J1349 |
|
Engine Torque |
120 ft-lb (163 Nm) @ 2,500 rpm |
|
Power |
98 HP / 73 kW @ 4,600 rpm |
|
Lean Angle Method |
J1168 |
|
Lean Angle, Right |
28.5 degrees |
|
Lean Angle, Left |
28.5 degrees |
|
Fuel Economy |
47 mpg (5 L/100 km) Est. City/Hwy |
Electric
|
Specification |
FXD Super Glide® |
|---|---|
|
Battery |
Sealed, AGM, 12V, 17.5Ah, 310 CCA at 0°F |
|
Charging |
Three-phase, 48 Amp system, 624 Watts max @ 2,000 rpm |
|
Starting |
1.6 kW electric with solenoid shift |
|
Headlamp |
All LED, low beam, high beam, signature position lamp |
|
Tail/Stop |
Bullet-style LED stop/tail/turn signals |
|
Front Signals |
LED Bullet Turn Signals |
|
Rear Signals |
LED Bullet Turn Signals |
|
Gauges |
5-inch analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, TCS, ABS, TPMS, cruise, clock, trip, range, tachometer |
|
Power Outlet |
USB C-Type, 5V at 2.4 Amp |
Rider Safety Enhancements
|
Specification |
FXD Super Glide® |
|---|---|
|
ABS |
Included |
|
Traction Control System (TCS) |
Included |
|
Drag-Torque Slip Control (DSCS) |
Included |
|
Tire Pressure Monitoring (TPMS) |
Included |
|
C-ABS |
Included |
|
C-TCS |
Included |
|
C-DSCS |
Included |
|
Electronic Linked Braking |
N/A |
|
Vehicle Hold Control |
N/A |
Warranty and Service
|
Specification |
FXD Super Glide® |
|---|---|
|
Warranty |
24 months, unlimited mileage |
|
Service Interval |
First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter |
