Yamaha SS 125
 |
|
| Manufacturer | India Yamaha Motor |
|---|---|
| Parent company | Yamaha Motor Company |
| Production | 2010-2015 |
| Predecessor | Yamaha Gladiator |
| Class | Standard |
| Engine | 123.7 cc, air-cooled, SOHC |
| Compression ratio | 10.0:1 |
| Top speed | 105 kmph |
| Transmission | 5-speed constant mesh |
| Suspension | Front: Hydraulic Telescopic Fork Rear:Rectangular swing arm with hydraulic shock absorber |
| Brakes | Front: 240 mm disc Rear: 130 mm drum |
| Tires | Front: 2.75 x 18-inch 4PR, 42P Rear: 3.00 x 18-inch 6PR, 52P |
| Wheelbase | 1,295 mm (51.0 in) |
| Dimensions | L: 1,995 mm (78.5 in) W: 730 mm (29 in) H: 1,110 mm (44 in) |
| Seat height | 795 mm (31.3 in) |
| Fuel capacity | 13.6 L (3.0 imp gal; 3.6 US gal) |
| Related | YBR 125 |

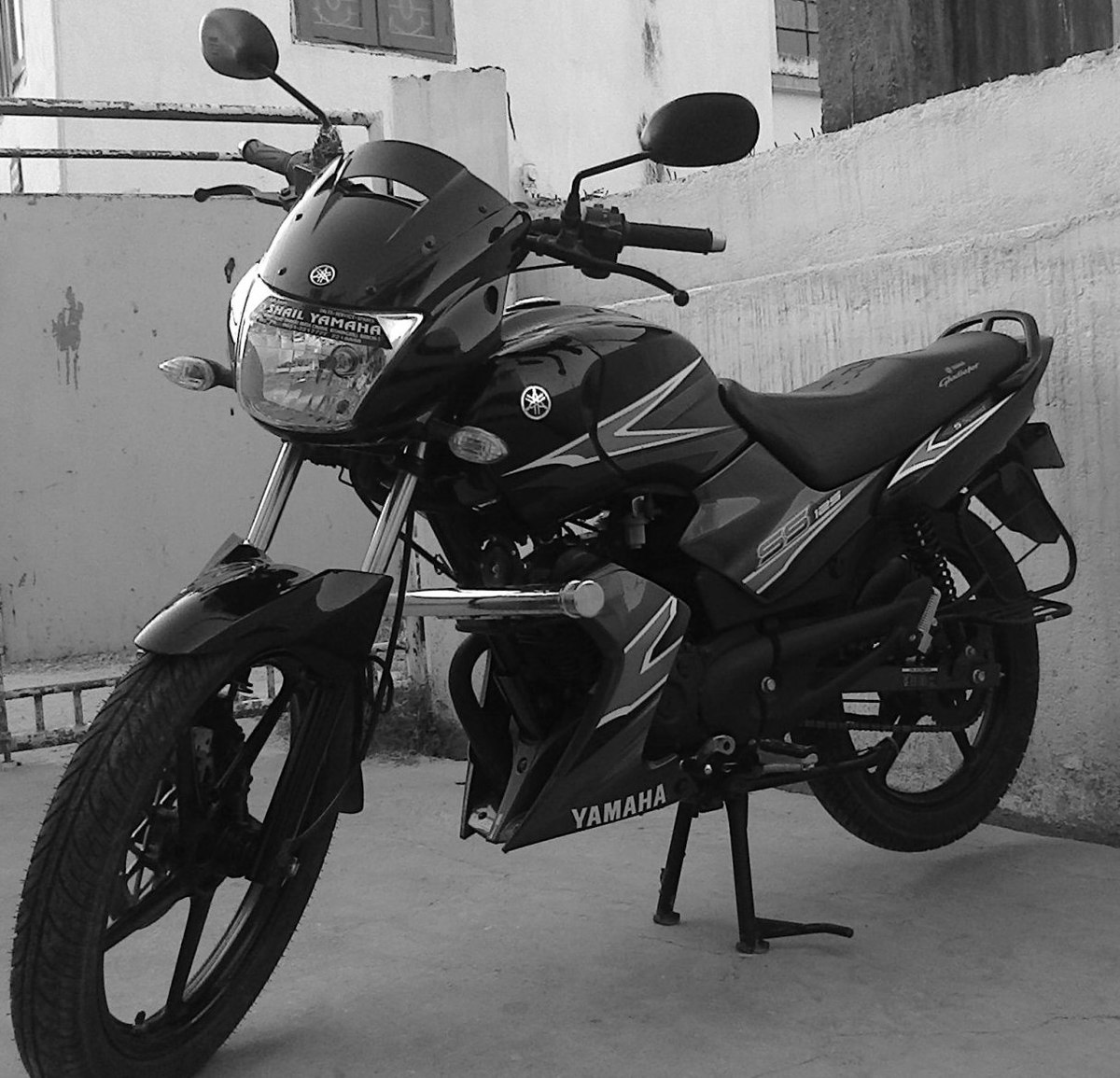

The Yamaha SS 125 is a rechristened version of the Yamaha Gladiator. It is a 125 cc motorcycle, produced by India Yamaha Motor.
In the beginning of March 2008, Yamaha introduced two new models of the Gladiator, Type RS and Type SS. In August 2010, Yamaha discontinued the Gladiator and launched the SS 125. The SS 125 had minor changes in the chassis which shortened its dimensions and made it lighter by 3 kg. It also features a high-flow paper air-filter, racing engine cowl and a stylish exhaust muffler.
Features and specifications
| SPECIFICATIONS | |
|---|---|
| Type | Single-cylinder, air-cooled, four-stroke SOHC, two-valve |
| Displacement | 123.7 cc |
| Bore & stroke | 54 mm × 54 mm (2.1 in × 2.1 in) |
| Compression ratio | 10.0:1 |
| Power | 11 PS @ 7,500 rpm |
| Torque | 10.4 Nm @ 6,500 rpm |
| Idle Speed | 1,400 +- 100 rpm |
| Starting | Kick Start / Electric Start |
| Spark Plug | NGK CR7HSA – R |
| Gearbox | Five-speed constant mesh |
| Shift pattern | 1 down, 4 up |
| Primary reduction | 3.4 |
| Final reduction | 3.214 |
| Gear ratios | 1st: 3.000, 2nd:1.777. 3rd: 1.316, 4th:1.045, 5th: 0.875 |
| Clutch | Multiplate Wet Type |
| Battery | 12V- 5AH(Self) |
| Head Light | 12HS1(12v 35/35 W Halogen Bulb |
| Tail Lamp | 12v 21/5w |
| Indicators | 12v 10w |
| Chassis Type | Diamond Tubular Type |
| Caster/ Trail | 18° / 90 mm |
| Suspension Front | Telescopic Hydraulic Type |
| Suspension Rear | Rectangular Swing Arm With Hydraulic Shock Absorber |
| Brakes Front | Disc Type |
| Brakes Rear | Drum Type |
| Tyre Front | 2.75 x 18-inch 42 P |
| Tyre Rear | 18.00 x 18-inch 6pr, 52 P |
| Kerb Weight | Kerb Wt – 125 kg |
| Max Payload | 130 kg |
| Wheel Base | 1,295 mm |
| Length | 1,995 mm |
| Width | 730 mm |
| Overall Height | 1,110 mm |
| Ground Clearance | 155 mm |
| Tank Capacity | 13.6 L (3.0 imp gal; 3.6 US gal) |
