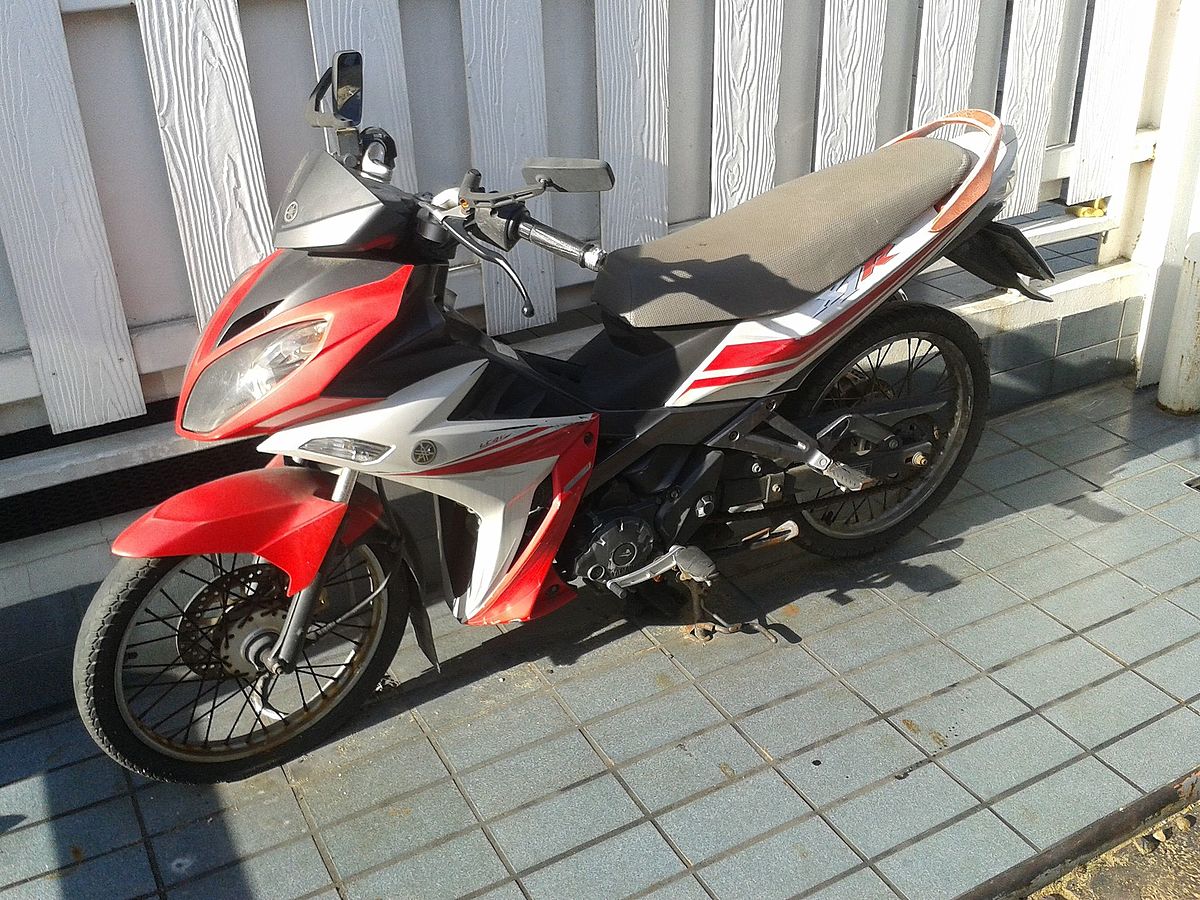

Yamaha X-1R
The Yamaha X-1R is a commuter motorbike built by Yamaha Motors. It is similar to a Yamaha X-1, but replaces that model’s 110 cc engine with a larger 135 cc engine. It is almost exactly similar with the Yamaha Sniper/T135 except for several distinguishable features, such as:
- Body styling & fairings
- Engine & swing arm color (black)
- Headlight assembly
- Instrument panel
- Transmission (1 down, 3 up)
- Movable foot pegs
- Tail light assembly
- Bent side mirrors
- Clip-on handlebars
- Dual piston front disc brakes
- Rear disc brakes
- Kick starter rubber
Specifications
| Engine | |
| Form | 4-stroke SOHC single cylinder with liquid cooling 4 valves |
| displacement | 134.4 cm3 (8.20 cu in) |
| Compression ratio | 10.9 : 1 |
| Cylinder | 54.0 mm (2.13 in) bore x 58.7 mm (2.31 in) stroke |
| Fuel system | Carburetor |
| Clutch | Hand clutch wet multi-plate clutch hands overlap |
| Transmission | Sports gear A level 4 (1 down, 4 up) |
| Fuel tank capacity | 4.0 L (1.1 US gal) |
| Carriage | |
| Dimensions | 670 mm (26 in) wide x 1,945 mm (76.6 in) long x 1,020 mm (40 in) high |
| Weight (minus fuel) |
105 kg (231 lb) |
| Suspension | |
| Front | Telescopic spring/oil damped |
| Rear | Swing single shock (mono Cross) |
| Brakes | |
| Front | Dual piston disc |
| Rear | disc |
| Tires | |
| Front | 70/90 – 17 M/C 33P |
| Rear | 80/90 – 17 M/C 44P |
