Yamaha XMAX

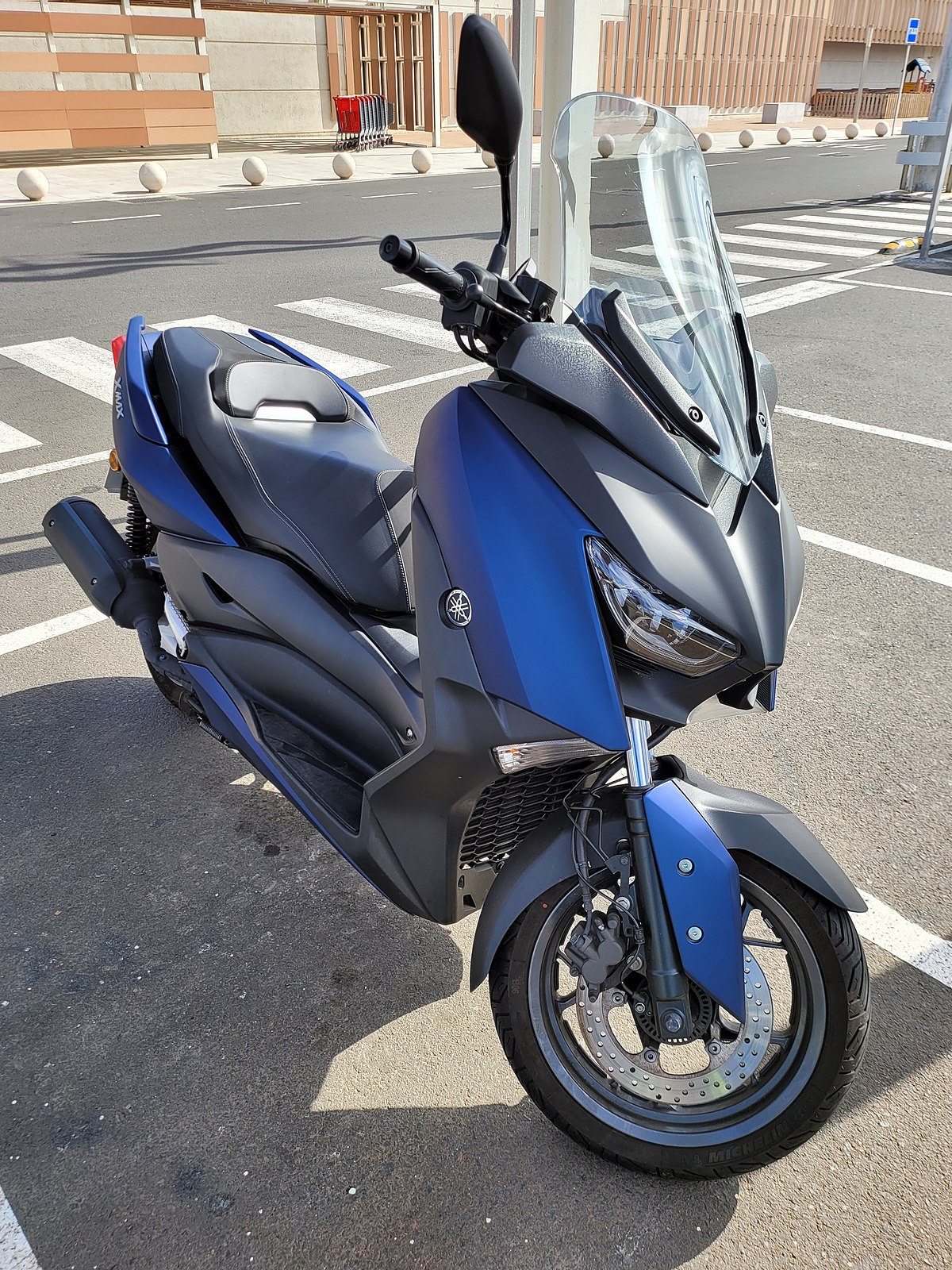

Yamaha XMAX 125, Model 2017
|
|
| Manufacturer | Yamaha Motor Company |
|---|---|
| Also called | MBK Evolis |
| Production | 2006–present |
| Predecessor | Yamaha Versity |
| Class | Maxi-scooter |
The Yamaha XMAX is a series of maxi-scooters manufactured by Yamaha Motor Company since 2006.
It is available in four engines (the 125, 250, 300 and the 400 cm3), and is enjoying strong commercial success in Europe. It belongs to the GT category because of its lines, its sportiness and its comfort. In 2010, Yamaha marketed a model revised and corrected to pass European emission standard Euro 3. In 2017, Yamaha marketed the 300 model meeting Euro 4 standards, the 125 model in 2021 met the Euro 5 standards.
| XMAX 125 | XMAX 250 Tech MAX | 2020 XMAX 300 | 2020 XMAX 400 | |
|---|---|---|---|---|
| Engine | ||||
| Engine Type | 124 cc (7.6 cu in) single cylinder four-stroke | 249 cc (15.2 cu in) single cylinder four-stroke | 292 cc (17.8 cu in) single cylinder four-stroke | 395 cc (24.1 cu in) single cylinder four-stroke |
| Bore/Stroke | 52.0 mm × 58.6 mm (2.05 in × 2.31 in) | 70.0 mm × 64.9 mm (2.76 in × 2.56 in) | 70.0 mm × 75.9 mm (2.76 in × 2.99 in) | 83.0 mm × 73.0 mm (3.27 in × 2.87 in) |
| Compression Ratio | 11.2:1 | 10.5:1 (±0.4) | 10.9:1 | 10.6:1 |
| Drivetrain | ||||
| Transmission | V-Belt Automatic | |||
| Front Suspension | Telescopic fork | Telescopic fork | ||
| Rear Suspension | Unit Swing | Unit Swing | ||
| Front Brakes | Hydraulic single disc, Ø267 mm (ABS) | Hydraulic double disc, Ø267 mm (ABS) | ||
| Rear Brakes | Hydraulic single disc, Ø245 mm (ABS) | Hydraulic single disc, Ø267 mm (ABS) | ||
| Front Tire | 120/70-15″ | |||
| Rear Tire | 140/70-14″ | 150/70-13″ | ||
| Electricity | ||||
| Ignition | TCI: Transistor Controlled Ignition | |||
| Battery | 12V 7Ah | |||
| Dimensions | ||||
| Wheelbase | 1,526 mm (60.1 in) | 1,540 mm (61 in) | 1,567 mm (61.7 in) | |
| Length | 2,185 mm (86.0 in) | |||
| Width | 775 mm (30.5 in) | 766 mm (30.2 in) | ||
| Seat height | 795 mm (31.3 in) | 800 mm (31 in) | ||
| Wet Weight | 175 kg (386 lb) | 179 kg (395 lb) | 179 kg (395 lb) | 210 kg (460 lb) |
| Liquids capacity | ||||
| Fuel | 13 L (2.9 imp gal; 3.4 US gal), including
2.4 L (0.53 imp gal; 0.63 US gal) reserve |
|||
| Engine oil | 1.40 L (0.31 imp gal; 0.37 US gal)
1.50 L (0.33 imp gal; 0.40 US gal) with oil filter removal |
1.50 L (0.33 imp gal; 0.40 US gal)
1.60 L (0.35 imp gal; 0.42 US gal) with oil filter removal |
1.50 L (0.33 imp gal; 0.40 US gal)
1.70 L (0.37 imp gal; 0.45 US gal) with oil filter removal |
|
| Cooling system | 0.85 L (0.19 imp gal; 0.22 US gal) | 1.10 L (0.24 imp gal; 0.29 US gal) | 1.30 L (0.29 imp gal; 0.34 US gal) | |
| Performance | ||||
| Power Output | 10.5 kW (14 hp) @ 8750 rpm | 16.8 kW (23 hp) @ 7000 rpm | 20.6 kW (28 hp) @ 7250 rpm | 24.5 kW (33 hp) @ 7000 rpm |
| Torque | 12 N-m @ 6500 rpm | 24.3 N-m @ 5500 rpm | 29 N-m @ 5750 rpm | 36 N-m @ 6000 rpm |
| Fuel consumption | 2.7 L/100 km (105 mpg‑imp; 87 mpg‑US) | 3.1 L/100 km (91 mpg‑imp; 76 mpg‑US) | 3.2 L/100 km (88 mpg‑imp; 74 mpg‑US) | 4.18 L/100 km (68 mpg‑imp; 56 mpg‑US) |
| CO2 emission | 63g/km | 72 g/km | 74 g/km | 96g/km |
