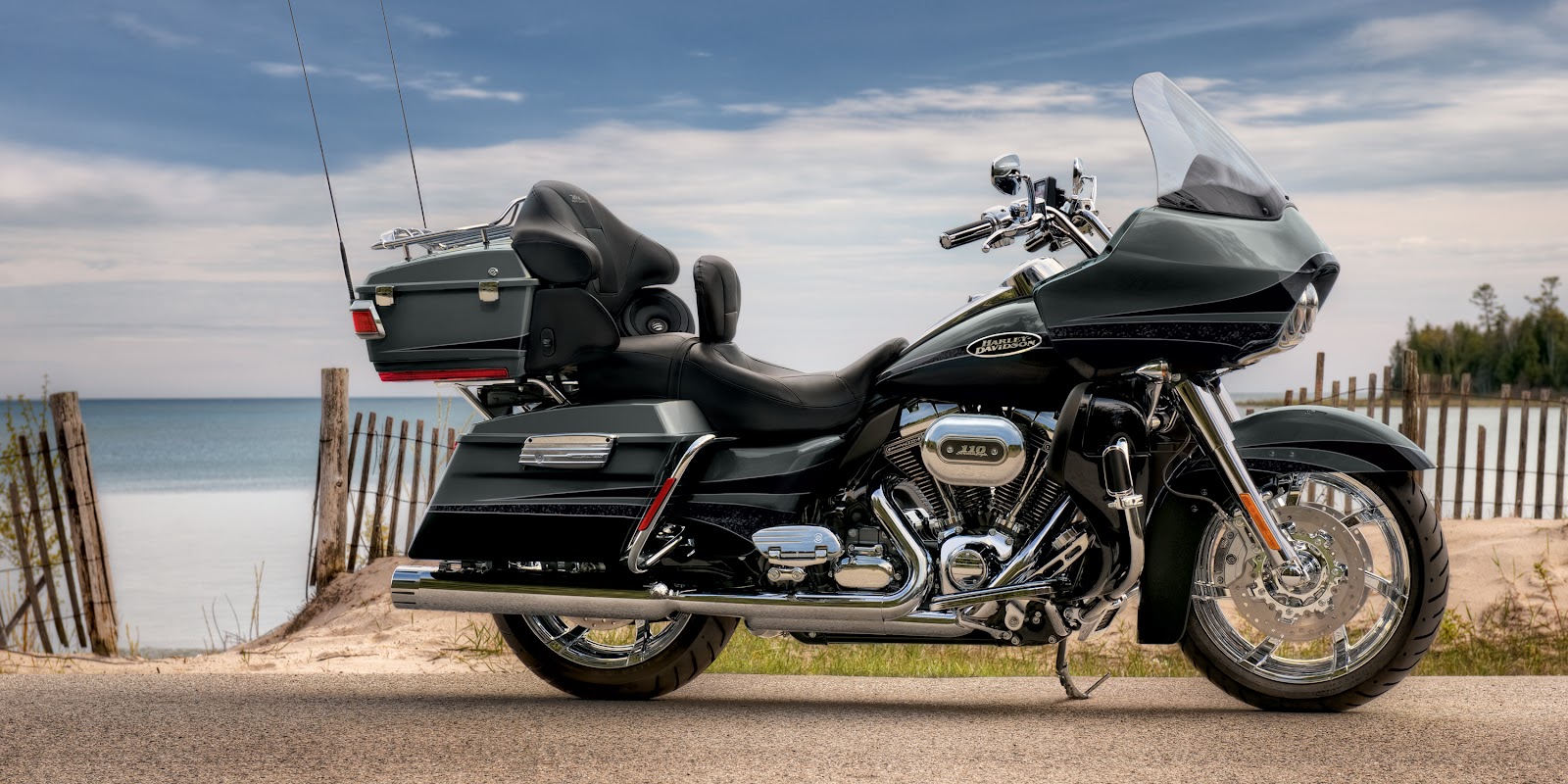

2011 Harley-Davidson FLTRUSE CVO ROAD GLIDE ULTRA

MILWAUKEE (July 27, 2010) – The 2011 Custom Vehicle Operations™ (CVO) Road Glide® Ultra is a new, high-end touring motorcycle designed for style, comfort, and performance. This limited-production bike features a frame-mounted fairing, chrome trim, and stunning paintwork. It also boasts exclusive audio, navigation, and seating upgrades, making it a standout among touring motorcycles.

Powered by the Screamin’ Eagle® Twin Cam 110™ V-Twin engine, the CVO Road Glide Ultra is not only powerful but also incredibly stylish. Harley-Davidson® CVO models are designed for those who want the finest in custom paint, accessories, and performance, setting a new standard in Harley-Davidson style and engineering.

The CVO Road Glide Ultra is built on the Harley-Davidson Touring chassis, featuring a strong, single-spar frame and a two-piece swingarm for durability and responsive handling on long rides. Dunlop® Multi-Tread dual-compound tires provide excellent grip and extend rear tire life, while air-adjustable rear shocks allow for varying passenger and luggage loads. The bike’s suspension is tuned for both comfort and confident handling.

The bike features a frame-mounted fairing for lighter steering and dual headlamps. The cockpit-style instrument display adds a touch of sophistication, and ventilated fairing lowers ensure comfort on long rides. ABS (Anti-lock Braking System) and cruise control come standard on this model.

Key Features of the CVO Road Glide Ultra:

• Screamin’ Eagle Twin Cam 110 Engine: This 1803cc V-Twin engine produces 115 ft. lbs. of torque at 4,000 RPM and is equipped with Electronic Sequential Port Fuel Injection (ESPFI) and Electronic Throttle Control (ETC). It’s paired with a 6-speed Cruise Drive transmission for smooth shifting.
• New Chrome Muffler End Caps: These end caps with black accents complete the 2-1-2 exhaust system.
• Road Tech Zumo 660 GPS Navigation: This system is integrated into the handlebars and allows voice navigation commands through the speakers. The GPS can be removed for use in other vehicles.
• Upgraded Entertainment System: The bike includes an 8GB Apple iPod nano® with a Harley-Davidson logo, an iPod holder in the saddlebag, and a radio interface that charges the iPod and integrates it with hand controls. The Harman/Kardon Advanced Audio system includes four high-performance BOOM! Audio speakers, XM satellite radio, CB/intercom with headsets, and a custom amplifier.
• Comfortable Two-Up Touring Seat: The new seat design with leather inserts keeps the rider and passenger comfortable on long rides, while dual heat controls offer added comfort. The seat is narrower at the front for better leg reach, and the passenger backrest includes adjustable lumbar support.
• New 16-Inch Windshield: The lightly smoked windshield has a reduced angle to minimize wind turbulence in the cockpit.
• Wind Deflectors: These deflectors, fitted to the engine guard, help reduce turbulence and enhance rider comfort.
• Chrome Agitator Wheels: 18-inch wheels on both the front and rear add to the bike’s premium look.
• New Chrome Handlebar: This internally wired, one-inch-diameter handlebar offers a more comfortable shape for the rider.
• Hard Saddlebags and Deluxe Tour-Pak®: These offer ample storage and come with color-matched LED brake lights, a luggage rack, and a power locking system controlled by a key fob.
• Rumble Collection Accents: Chrome highlights on footboard inserts, shifter pegs, brake pedal, highway pegs, and hand grips provide added flair.
• New Diamond-Cut Trim: The CB pod, Screamin’ Eagle 110 intake, and Tour-Pak lid feature stylish diamond-cut trim.

The bike comes with a Customer Care Package, which includes a tool kit, microfiber cloth, and an H-D® jiffy stand coaster.

Color Options for the 2011 CVO Road Glide Ultra:

• Rio Red & Black Ember with Quartzite Graphics
• Charcoal Slate & Black Twilight with Quartzite Graphics
• Frosted Ivory & Vintage Gold with Quartzite Graphics

Production of this model is limited to about 3,000 units, and the suggested U.S. retail price is $35,999.

Harley-Davidson Motor Company is renowned for producing heavyweight custom, cruiser, and touring motorcycles, and offers a wide range of parts, accessories, and gear. For more information, visit the Harley-Davidson website.

Category	Specification
Dimensions
Length	98.8 in. (2510 mm)
Overall Width	38.0 in. (965 mm)
Overall Height	55.4 in. (1407 mm)
Seat Height (Laden)	27.5 in. (699 mm)
Seat Height (Unladen)	29.5 in. (749 mm)
Ground Clearance	5.1 in. (130 mm)
Rake (steering head)	26°
Fork Angle	29.3°
Trail	6.69 in. (170 mm)
Wheelbase	63.5 in. (1613 mm)
Tires	Dunlop® Harley-Davidson Series, bias blackwall front and rear
– Front	D408, 130/70B18 63H
– Rear	D407, 180/55B18 80H
Fuel Capacity	6.0 gal. (22.7 L), warning light at approximately 1.0 gal.
Oil Capacity	4.0 qts. (3.8 L)
Transmission Capacity	1.0 qts.
Primary Chain Case Capacity	1.4 qts.
Weight
As Shipped	905 lbs. (410.5 kg)
In Running Order	943 lbs. (427.7 kg)
Gross Vehicle Weight Rating	1360 lbs. (616.9 kg)
Gross Axle Weight Rating (Front)	500 lbs. (226.8 kg)
Gross Axle Weight Rating (Rear)	927 lbs. (420.5 kg)
Engine
Engine Type	Air-cooled, Twin Cam 110™
Valves	Pushrod-operated, overhead valves, hydraulic, self-adjusting lifters
Bore x Stroke	4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement	110 cu. in. (1803 cc)
Compression Ratio	9.15:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner	Ventilator Intake with chrome cover, washable exposed element with rain sock
Lubrication System	Pressurized, dry-sump
Drivetrain
Primary Drive	Chain, 34/46 ratio
Final Drive	Belt, 32/68 ratio
Clutch	Hydraulically actuated, 9-plate, wet, high performance spring
Transmission	6-Speed Cruise Drive®
Gear Ratios (Overall)	1st: 9.593, 2nd: 6.65, 3rd: 4.938, 4th: 4, 5th: 3.407, 6th: 2.875
Chassis
Frame	Mild steel, tubular frame, two-piece stamped and welded backbone, MIG welded
Swingarm	Mild steel, two-piece, forged junctions, MIG welded
Front Forks	41.3 mm telescopic with blow-by valve
Rear Shocks	Air-adjustable
Wheels	7-spoke, mirror chrome Agitator wheels
– Front Wheel	18 in. x 3.5 in. (457 mm x 89 mm)
– Rear Wheel	18 in. x 5 in. (457 mm x 127 mm)
Brakes	32 mm, 4-piston fixed front and rear
Rotor Type	Patented, fixed rear rotors, dual floating front rotors
– Front Brake	11.81 in. x .2 in. (300 mm x 5 mm)
– Rear Brake	11.81 in. x .28 in. (300 mm x 7 mm)
Anti-lock Braking System (ABS)	Standard
Suspension Travel	Front Wheel: 4.6 in. (117 mm), Rear Wheel: 3 in. (76 mm)
Performance
Engine Torque	115 ft. lbs. @ 4000 RPM (156 Nm @ 4000 RPM)
Lean Angle	Right: 33°, Left: 30°
Fuel Economy (EPA Urban/Highway)	32/47 mpg (7.40/5.0 L/100 km)
Electric
Battery	12V, maintenance-free, 28-amp/hour, 270 cca
Charging System	Three-phase, 50-amp system (585W @ 13V, 650W max @ 13V)
Starting System	1.4 kW electric, solenoid shift starter motor engagement
Lights	Headlamp: 55W low, 60W high, Tail/Stop: 8W/28W, Turn: 28W self-canceling
Indicator Lamps	High beam, neutral, running lights, turn signals, low oil pressure, diagnostics
Warranty
Warranty	24 months (unlimited mileage)
Service Interval	First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
