Yamaha MT-10

Yamaha MT-10

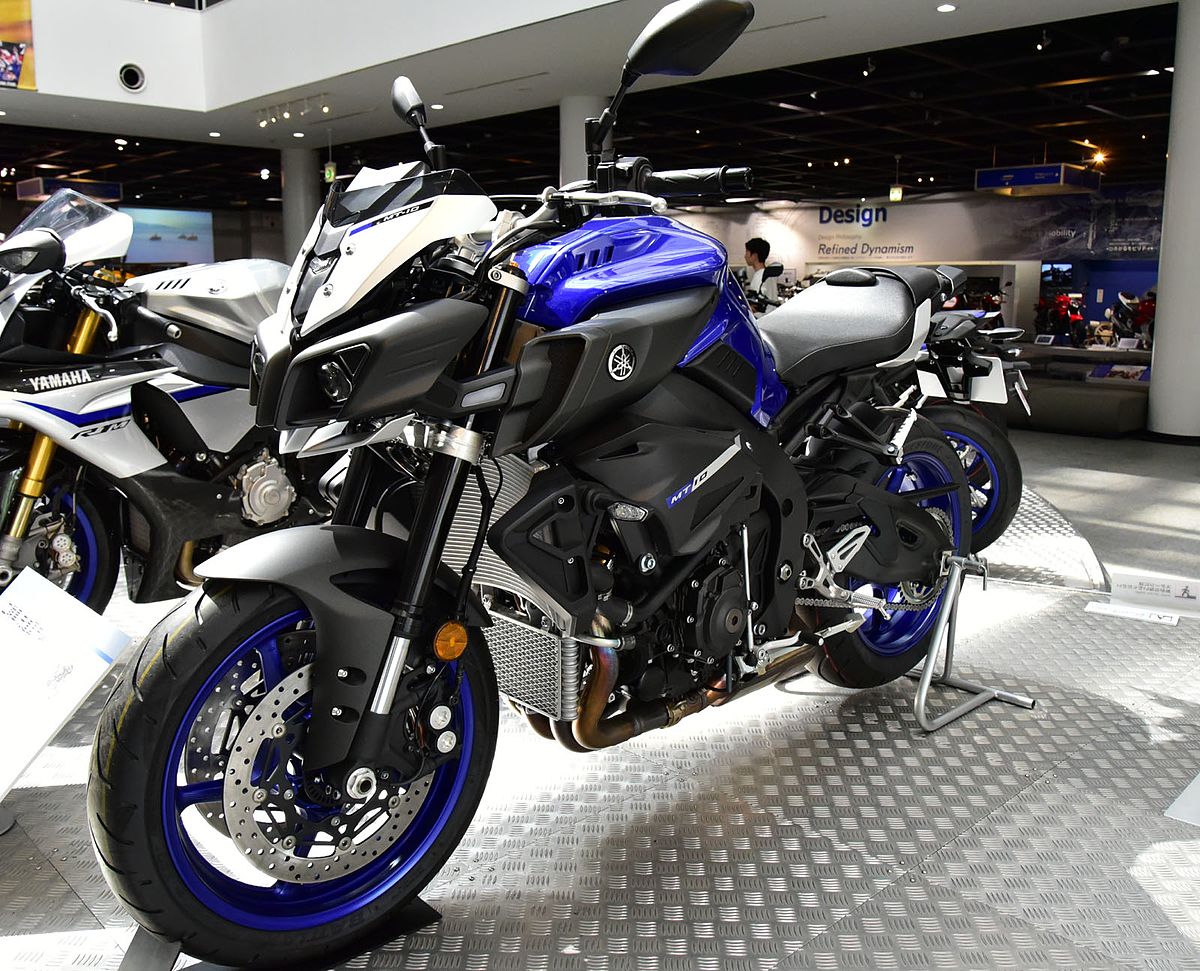

2016 Model Yamaha MT-10
Manufacturer	Yamaha Motor Company
Also called	Yamaha FZ-10 (North America; 2016–2017)
Parent company	Yamaha Corporation
Production	2016–present
Assembly	Japan
Predecessor	Yamaha FZ1
Class	standard
Engine	998 cc (60.9 cu in) liquid-cooled 4-stroke 16-valve DOHC inline-four with crossplane crankshaft
Bore / stroke	79.0 mm × 50.9 mm (3.1 in × 2.0 in)
Compression ratio	12.0:1
Power	118 kW (158.2 hp; 160.4 PS) @ 11,500 rpm (claimed) 97.8 kW (131.2 hp; 133.0 PS) @ 9,700 rpm (rear wheel)
Torque	111 N⋅m (82 lbf⋅ft) @ 9,000 rpm (claimed) 98.6 N⋅m (72.7 lbf⋅ft) @ 9,300 rpm (rear wheel)
Ignition type	TCI
Transmission	6-speed constant mesh
Frame type	Aluminium twin-spar (Deltabox)
Suspension	Front: Inverted 43 mm (1.7 in) telescopic fork Rear: Aluminium swingarm (link type)
Brakes	Front: 4-piston caliper with dual 320 mm (12.6 in) discs Rear: Single-piston caliper with single 220 mm (8.7 in) disc
Tires	Front: 120/70–17 (tubeless) Rear: 190/55–17 (tubeless)
Rake, trail	24°, 102 mm (4.0 in)
Wheelbase	1,400 mm (55.1 in)
Dimensions	L: 2,095 mm (82.5 in) W: 800 mm (31.5 in) H: 1,110 mm (43.7 in)
Seat height	825 mm (32.5 in)
Weight	209–212 kg (461–467 lb) (wet)
Fuel capacity	17 L (3.7 imp gal; 4.5 US gal)
Oil capacity	3.9 L (0.9 imp gal; 1.0 US gal)
Related	Yamaha MT-07/FZ-07 Yamaha MT-09/FZ-09 Yamaha YZF-R1

The Yamaha MT-10 (called FZ-10 in North America until 2017) is a standard motorcycle made by Japanese motorcycle manufacturer Yamaha in their MT motorcycle series, first sold in 2016. It was introduced at the 2015 EICMA in Milan, Italy. It is the flagship member of the MT range from Yamaha. The crossplane engine is based on the 2015 YZF-R1 but re-tuned to focus on low to mid-range torque. It features a number of significant technical changes including newly designed intake, exhaust and fueling systems. It produces a claimed 118 kW (158.2 hp; 160.4 PS) @ 11,500 rpm and 111 N⋅m (82 lbf⋅ft) @ 9,000 rpm. It replaced the fourteen-year old FZ1 as the flagship bike in Yamaha’s sport naked range.

The bike had non-functional V-Max-like air scoops from 2016 until 2021; however, with the 2022 redesign, they became functional ram-air scoops.

In October 2016, Yamaha released the MT-10 SP (for Europe only), which includes some upgrades such as Öhlins electronic racing suspension derived from the YZF-R1M, full-colour TFT LCD instrument panel, and an exclusive color scheme. For 2018, the bike is now designated MT-10 in all markets.

Shun Miyazawa said buyers are moving away from the supersport bikes, adding, “(Yamaha) aim to create an older and younger brother and cousins (to the MT-09) – maybe the same capacity, but a slightly different concept”. This was translated into the creation of the MT-07 (FZ-07 in North America), the XSR700, the XSR900 and the MT-10 (FZ-10 in North America). The MT-10 is using the same engine from R1, albeit detuned from the factory.
