Yamaha Vino 125

Yamaha YJ125
Manufacturer	Yamaha Motor Company
Also called	YJ125S, Vino 125, Fino 125
Parent company	Yamaha Corporation
Production	2004–2009
Predecessor	Yamaha XC125 Riva 125
Class	Scooter
Engine	124 cc (7.6 cu in) SOHC air-cooled four-stroke single; ;
Bore / stroke	51.5 mm × 60.0 mm (2.03 in × 2.36 in)
Compression ratio	9.8:1
Top speed	89 km/h (55 mph)
Transmission	Centrifugal clutch; V-belt automatic CVT
Suspension	Front: telescopic coil spring/oil damper; Rear: swingarm coil spring/oil dampener
Brakes	Front: 180 mm disc; Rear: 110 mm drum
Tires	Tubeless Cheng Shin 3.50-10 51J
Rake, trail	32°, 75 mm
Wheelbase	1,229.4 mm (48.40 in)
Dimensions	L: 1,752.6 mm (69.00 in); W: 698.5 mm (27.50 in); H: 759 mm (29.9 in)
Seat height	760 mm (30 in)
Weight	103.9 kg (229 lb) (dry); 109 kg (240 lb) (wet)
Fuel capacity	4.5 L (0.99 imp gal; 1.2 US gal)
Oil capacity	1.2 L (0.26 imp gal; 0.32 US gal)
Fuel consumption	4.2 L/100 km; 67 mpg‑imp (56 mpg‑US)
Related	Yamaha Mio

The Yamaha Vino 125 is a scooter introduced by Yamaha Motor Company in 2004 as a larger brother to the 49 cc (3.0 cu in) Yamaha Vino/Vino Classic, replacing the Yamaha Riva 125 (XC125) scooter. Little has changed since the 2004 introduction of the Vino 125 with the exception of color choices. Because of the engine size and top speed, in many US States, the Vino 125 requires a motorcycle license to legally operate. The Vino 125 has a relatively low seat height, making it popular among smaller riders. The motorcycle was sold until 2009 in the United States (and 2010 in Canada.)

The Vino 125 has an air-cooled 124 cc (7.6 cu in) single-cylinder 4-stroke SOHC engine. The engine has a fan for supplemental cooling. It has a Mikuni BS carburetor with an auto-choke and carburetor heat device. Emissions controls are a catalyzed muffler, AIR Injection system, and an evaporative fuel canister. The braking system is a 180 mm (7.1 in) single disc front brake and a 110 mm drum rear brake. The tires are 3.50×10.

The Vino has a very similar counterpart in Thailand, called Fino, which looks almost identical.

Colors

2004: Dull Red Metallic, Stardust Silver, Fairy Silver, Black, Light Grayish Blue Cocktail
2005: Dark Purplish Red Cocktail, Black, Stardust Silver
2006: Deep Purplish Blue Metallic, Stardust Silver
2007: Deep Purplish Blue Metallic, Light Grey Metallic
2008: Deep Purplish Blue Metallic, Black Metallic
2009: Raspberry Metallic, Silver
2010 (Canada Only): Metallic Black, Metallic White

Gallery

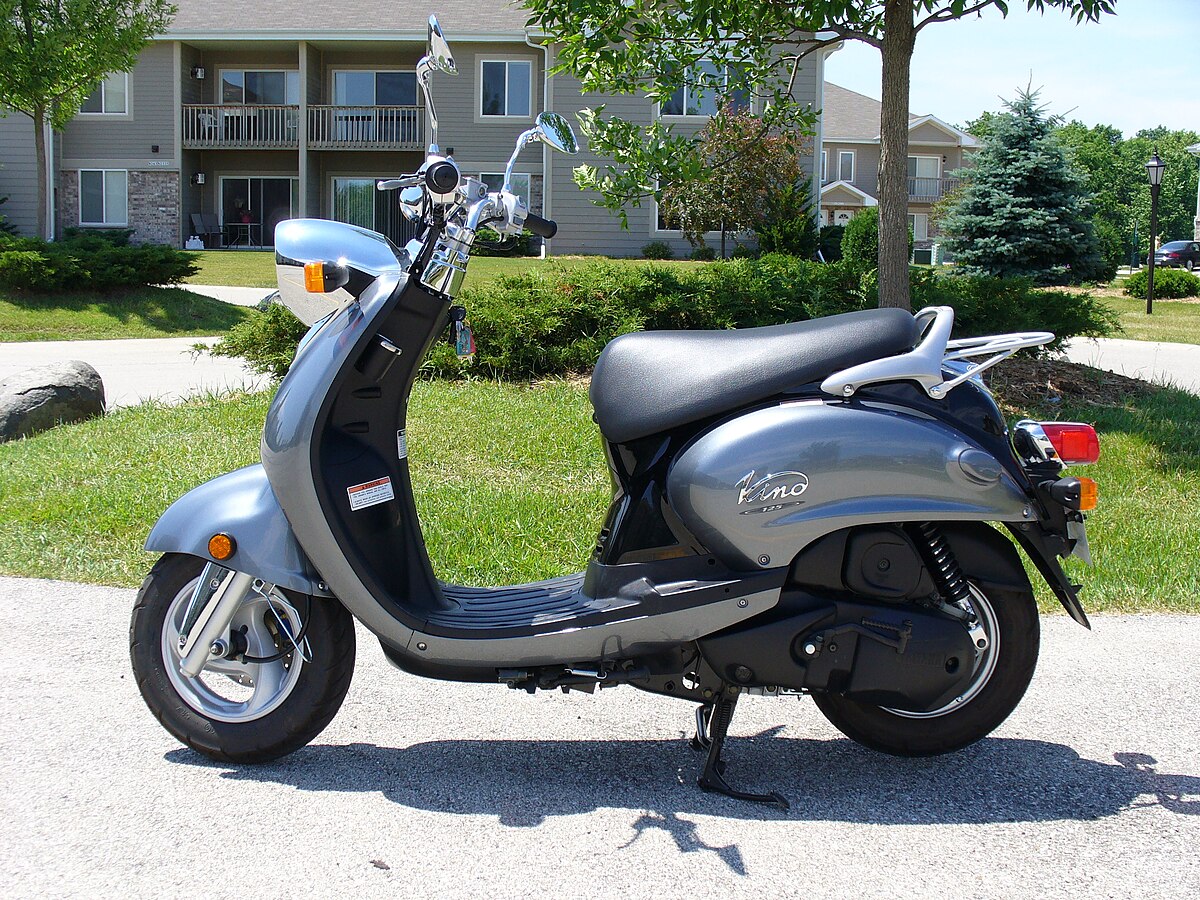

The picture below is a Yamaha Vino 50 but is so similar to the Vino 125 that it is hard to tell. The major difference is the overall width as well that the rear luggage rack is much more substantial in overall size on the Vino 125. The Vino 125 also has a large, rear, hand holding rail.
