John Deere S660, S670, S680, S685, S690 Fluid Capacity

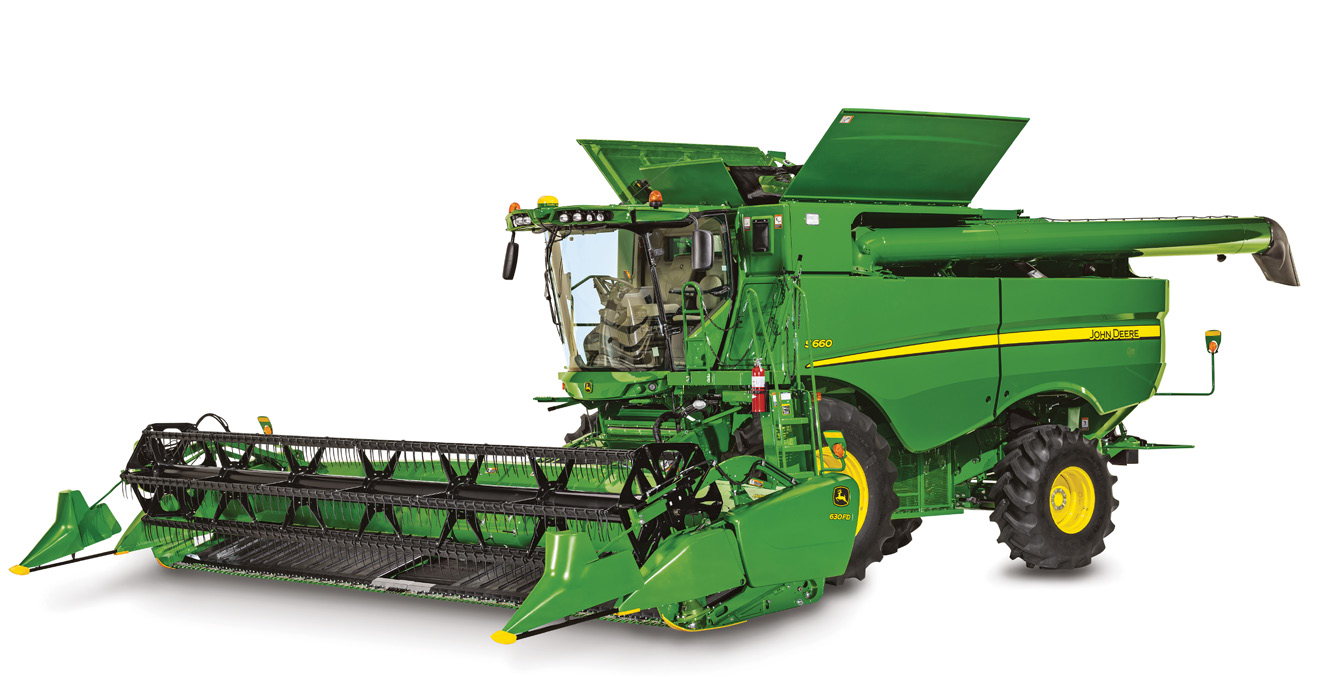

S-SERIES COMBINES S660, S670, S680, S685, S690

Category Model Capacity (L) Capacity (gal)
Fuel Tank S660, S670 950 L 250 gal
S680, S685, S690 1,250 L 330 gal
Cooling System with Heater (Cool-Gard™ II) S660, S670 53 L 14 gal
S680, S690 (IT4) 85 L 22.45 gal
S680, S685, S690 (Tier 2) 61.2 L 16.16 gal
Engine Crankcase with Filter (Plus-50™ II) S660, S670 27.5 L 7.3 gal
S680, S685, S690 (IT4) 43 L 11.4 gal
S680, S690 (Tier 2) 39 L 10.30 gal
Transmission (GL-5) S660, S670 9.6 L 2.53 gal
Final Drives (GL-5) All Models 8 L 2.11 gal
Countershaft Drive Gearcase (GL-5) All Models 1.2 L 0.31 gal
Heavy-Duty Feeder House Reverser Gearcase (without Cooler, ISO VG 460 Fully Synthetic) S660, S670 2.3 L 0.60 gal
Heavy-Duty Feeder House Reverser Gearcase (with Cooler, ISO VG 460 Fully Synthetic) S660 3.5 L 0.92 gal
Extra Heavy-Duty Feeder House Reverser Gearcase (without Cooler, ISO VG 460 Fully Synthetic) S680, S685, S690 3.6 L 0.95 gal
Multi-Speed Feeder House Reverser with Cooler (Optional, ISO VG 460 Fully Synthetic) S670, S680, S685, S690 5.2 L 1.37 gal
Extra Heavy-Duty Feeder House Reverser Gearcase (with Cooler, ISO VG 460 Fully Synthetic) S660, S670 4.9 L 1.29 gal
Loading Auger Gearcase (GL-5) All Models 3.8 L 1 gal
Two-Speed Separator Drive Gearcase (GL-5) S660 – S690 4.7 L 1.24 gal
Engine Gearcase with Transfer (Hy-Gard™) S660 21.3 L 5.6 gal
S670 (Non-ProDrive™ Machines) 21.3 L 5.6 gal
S670, S680, S685, S690 (ProDrive™ Machines) 51 L 13.5 gal
Premium Overshot Beater Gearcase (GL-5, if equipped) All Models 0.2 L 0.05 gal
Hydraulic/Hydrostatic Reservoir (Hy-Gard™) S660, S670 31 L 8.2 gal
S680, S685, S690 47 L 12.4 gal
